Hawkeye^® Blue Flexible Borescopes

Hawkeye Blue Flexible Endoscopes

2.5 / 4.0 / 6.0 / 8.0mm Diameter

Various lengths available

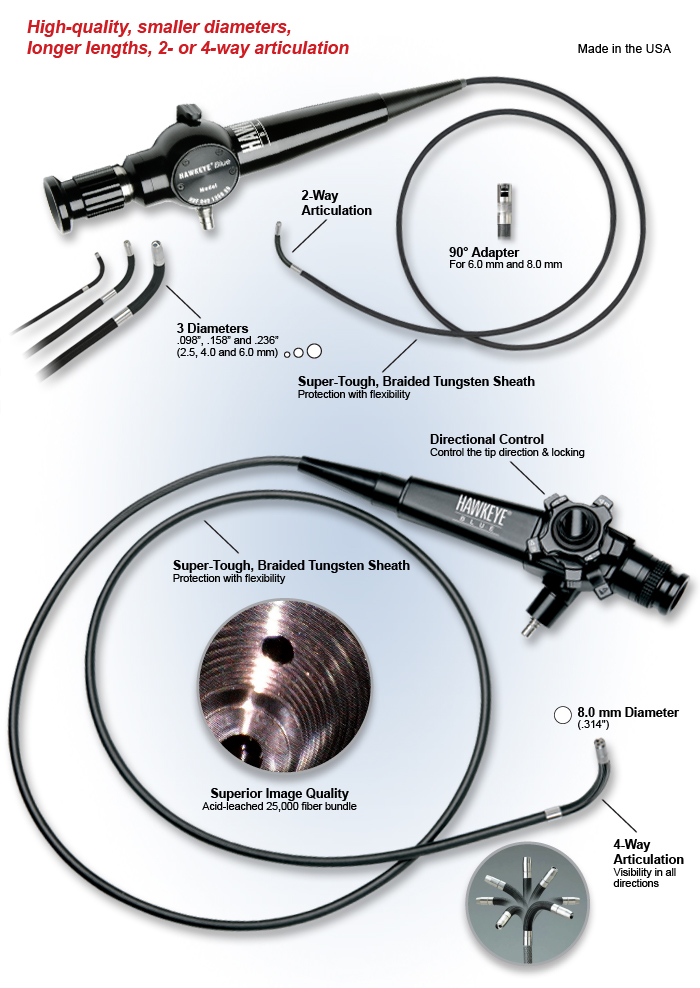

The Hawkeye Blue range of Flexible Borescopes give high quality, clear images and come in a range of options and configurations, allowing you to tailor your purchase to exactly what you need.

Each diameter of borescope contains a different number of fibers, from 7,000 in the smallest to 25,000 in the largest diameter version. The diameter of endoscope you choose will be affected by your application and also the clarity of the image that you require because, the more fibres, the higher the resolution, and thus the sharper and more detailed the images are. All imaging fiber bundles are acid-leached to reduce crosstalk between fibers and increase contrast.

Features:

• 2-way and 4-way articulating models available
• Locking facility on articulating tip
• ACMI light post as standard (but compatible with other lighting options if required)
• Coated in a plastic sheath to prevents entry of fluids like fuel or oil
• Tungsten wire coating to reduce friction and protect from damage

The flexibility and adaptability of the Hawkeye Blue Flexible borescope range make them ideal for using to inspect complex castings like engine blocks, turbochargers, tubes, pipes and turbine engines.

Call us to talk through your needs and we can create a custom Hawkeye Blue Flexible Borescope kit tailored for you.
